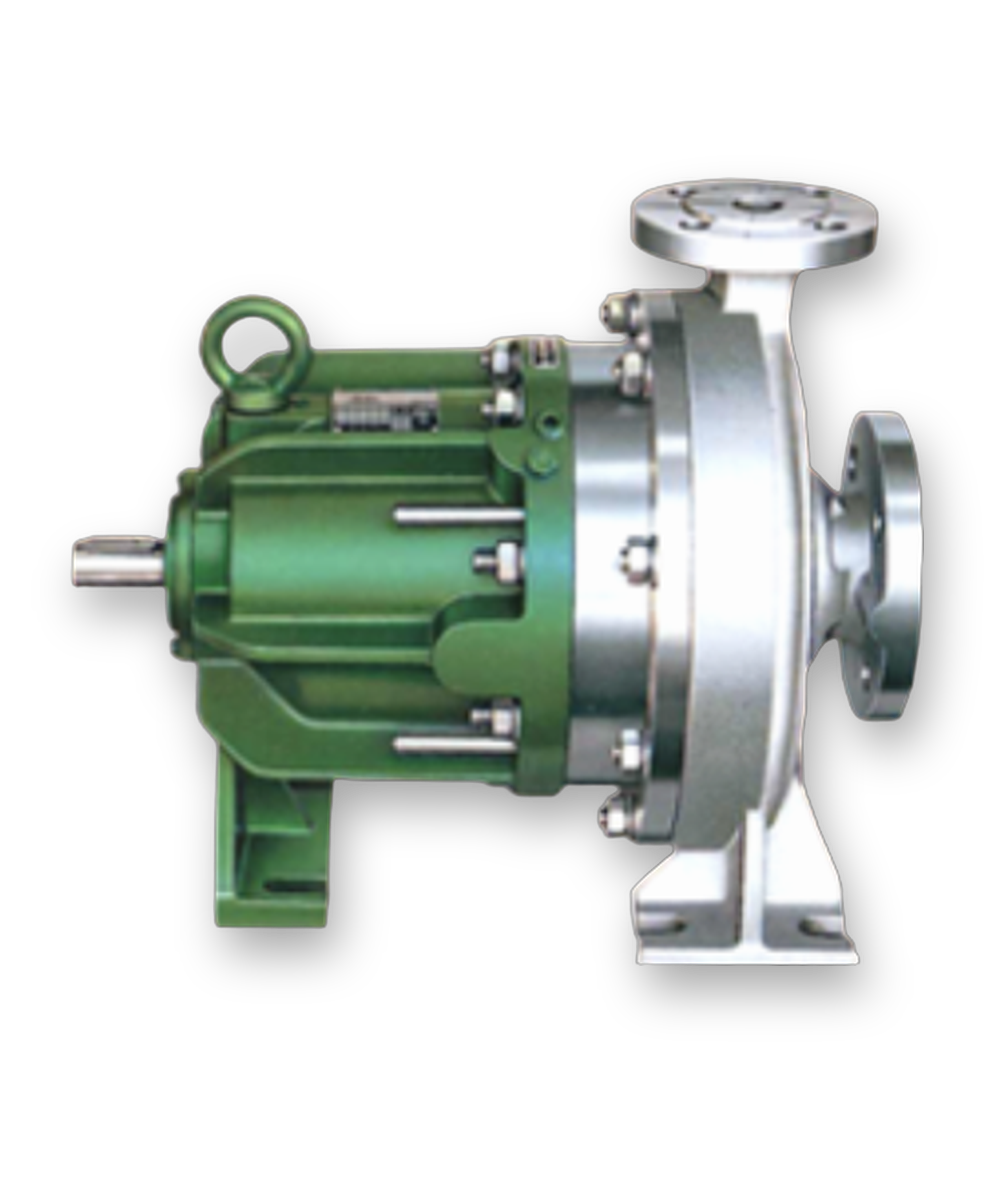

Dickow KML / KMB / KMV
Magnetic Drive Pump

Magnetic Coupled Centrifugal · KM Series

MAGNETIC DRIVESEALLESSZERO LEAKAGE

Specifications

Max capacity

300gpm

Max pressure

up to 232psi (16 bar)

Max head

213ft

Design

Sealless containment shell

Models

Series	Max capacity (gpm)	Max head (ft)	Max pressure
KML / KMB / KMV	300	213	16 bar (232 psi)

Downloads

Download Dickow KM Series Brochure

Overview

The Dickow KM series (KML, KMB and KMV) are compact sealless centrifugal pumps with magnetic coupling. A one-piece static containment shell, with no welds, forms a closed system with a hermetically sealed liquid end. The shell replaces double acting mechanical seals and their external reservoirs and controls, and the pumps run maintenance-free.

Key specs (Dickow bulletin): maximum capacity about 70 m³/h (300 gpm) and differential head 65 m (213 ft). Temperature range is −30°C to 200°C (390°F), and working pressure is 16 bar (232 psi). Maximum drive power is about 17 kW at 2900 rpm (28 hp at 3500 rpm).

Versions:

KML: a single stage, back-pull-out volute casing pump with end suction, top discharge and foot mounting. Capacity and casing dimensions comply with EN 22858 / ISO 2858.
KMB: close coupled to a standard motor, with no extra bearings, coupling or alignment.
KMV: a space-saving vertical inline design.

A jacketed casing and containment shell are available for products that melt or crystallize below ambient temperature. Magnets are cobalt samarium rare earth, and bearings are sintered silicon carbide.

Uses: small to mid-size transfers of toxic, explosive or air-reactive liquids in chemical, petrochemical and allied plants.

Cal West Mashy, the local Dickow representative for Northern California, can help you select and size the right pump. Call 888-841-3335.

Dickow PUMP Models KML KMB KMV — **DICKOW PUMP MODELS KML KMB KMV**

PROCESS, ANSI AND API-685 MAGNETIC COUPLED PUMP

The DICKOW pump series KM are sealless centrifugal pumps. The static containment shell forms a closed system with hermetically sealed liquid end. Model AMB pumps match ANSI casing dimensions.

APPLICATIONS

Magnetic driven KM-pumps are designed to improve plant and personnel safety. Especially when handling toxic, explosive or other dangerous liquids which react on contact with the atmosphere. The KM-pumps operate maintenance-free and their containment shells replace double acting mechanical seals, along with external fluid reservoirs and the necessary control equipment.

Maximum capacity appr. 70 m3/h (300 US-gpm), differential head 65 mLC (213 ft). Temperature range -30°C to 200°C (390°F), working pressure 16 bar (232 psi).

Dickow KML, KMB & KMV Magnetic Drive Pumps (API 685)

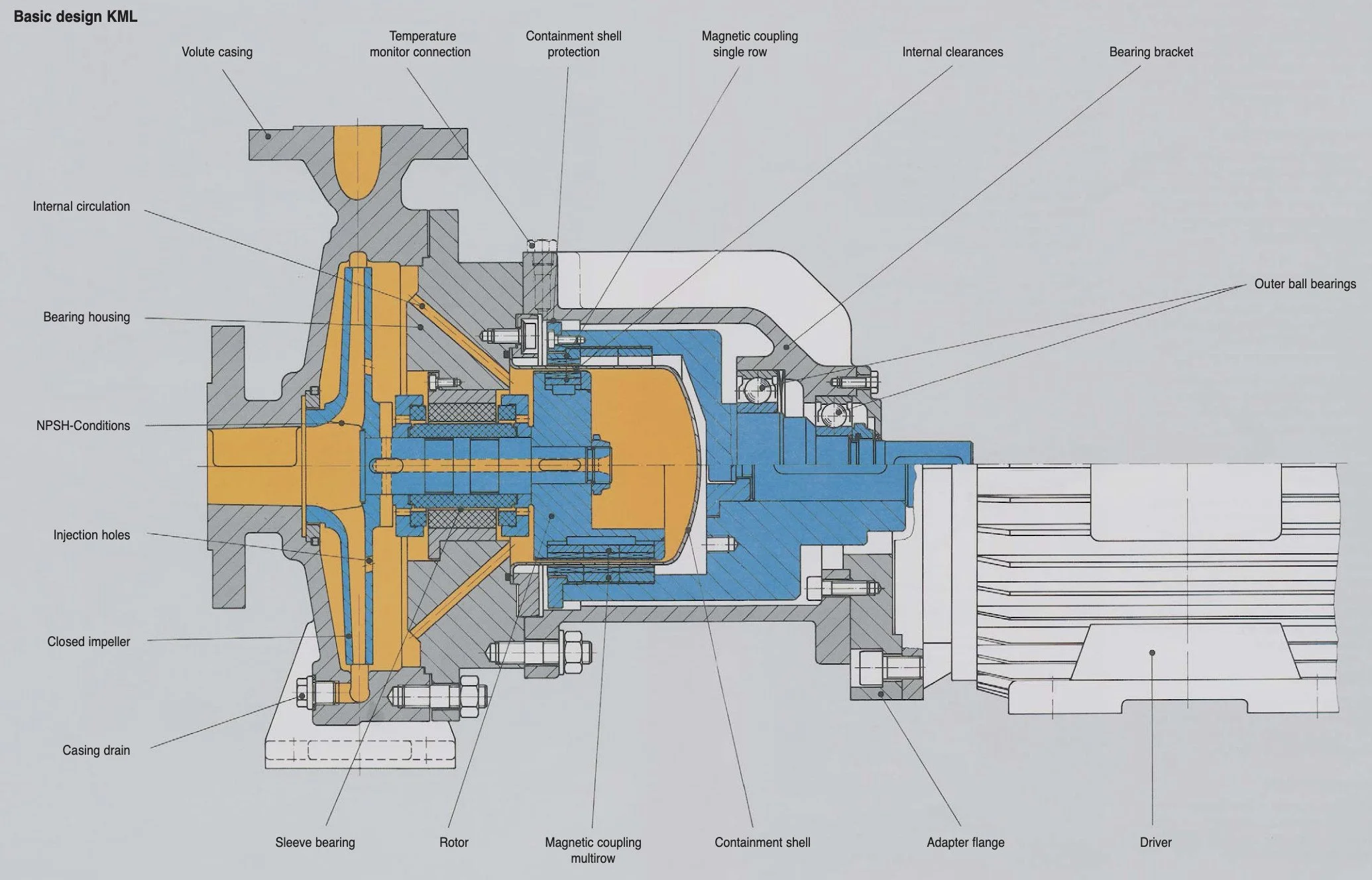

Dickow KML, KMB & KMV Magnetic Drive Pumps (API 685) (view 2)

Dickow KML, KMB & KMV Magnetic Drive Pumps (API 685) (view 3)

Dickow KML, KMB & KMV Magnetic Drive Pumps (API 685) (view 4)

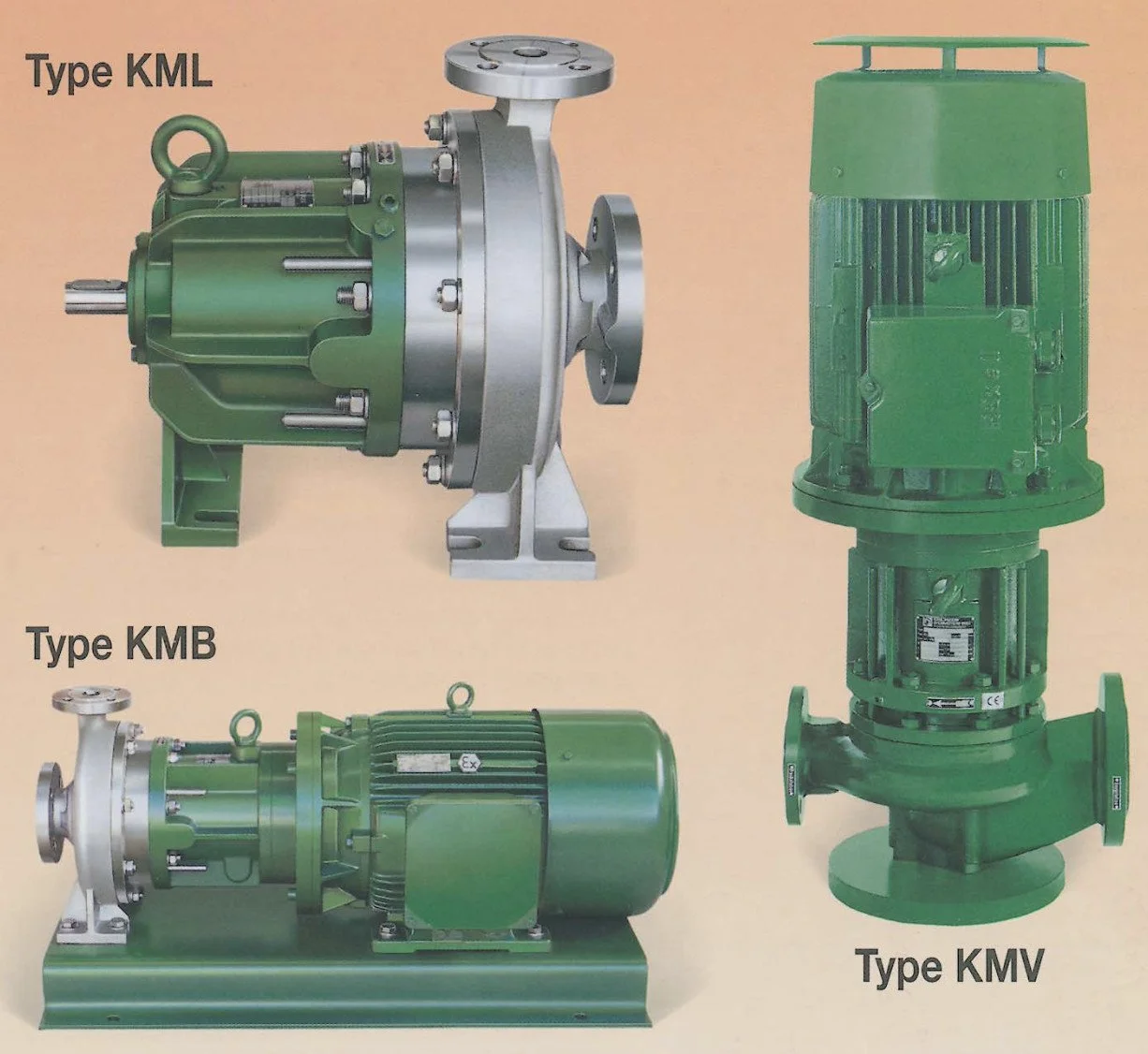

Dickow KML, KMB & KMV Magnetic Drive Pumps (API 685) (view 5)

Download Product Bulletin
