Dickow NMW / NMWR
Hot Oil Pump

Magnetic Coupled Hot Oil Circulation

HOT OILSEALLESSNO COOLING

Specifications

Max temperature

400°C

Max pressure

Not published

Cooling

No utility cooling needed

Design

Sealless containment shell

Models

Model	Service
NMW	Hot oil circulation
NMWR	Hot oil circulation

Downloads

Download Dickow NMW / NMWR Brochure

Overview

The Dickow NMW and NMWR are sealless, magnetic coupled hot oil circulation pumps for industrial heating plants. A static containment shell forms a closed system with a hermetically sealed liquid end, so the pump needs no mechanical seal and no utility cooling. In a conventional pump, the same service would need double mechanical seals.

How it handles heat: the NMW design has no internal circulation, and the magnet end is dead-ended. That keeps hot thermal oil away from the magnets and lets the pump run at temperatures up to 400°C (750°F). Dickow's NML/NMB bulletin names the NMR/NMWR types as the choice when temperatures go above the standard NML/NMB limits.

Construction: like the NM family, these are single stage centrifugal pumps with a cobalt samarium magnetic coupling that drives the impeller directly through the containment shell. The magnets in the driven rotor are fully encapsulated and do not contact the liquid.

Why it matters: removing the seal eliminates the most common cause of pump failure and leakage. It also removes the seal support system and its upkeep, which improves plant and personnel safety around hot oil.

Uses: thermal oil circulation in industrial heating plants, chemical and petrochemical plants and refineries.

Cal West Mashy, the local Dickow representative for Northern California, can help you select and size the right pump. Call 888-841-3335.

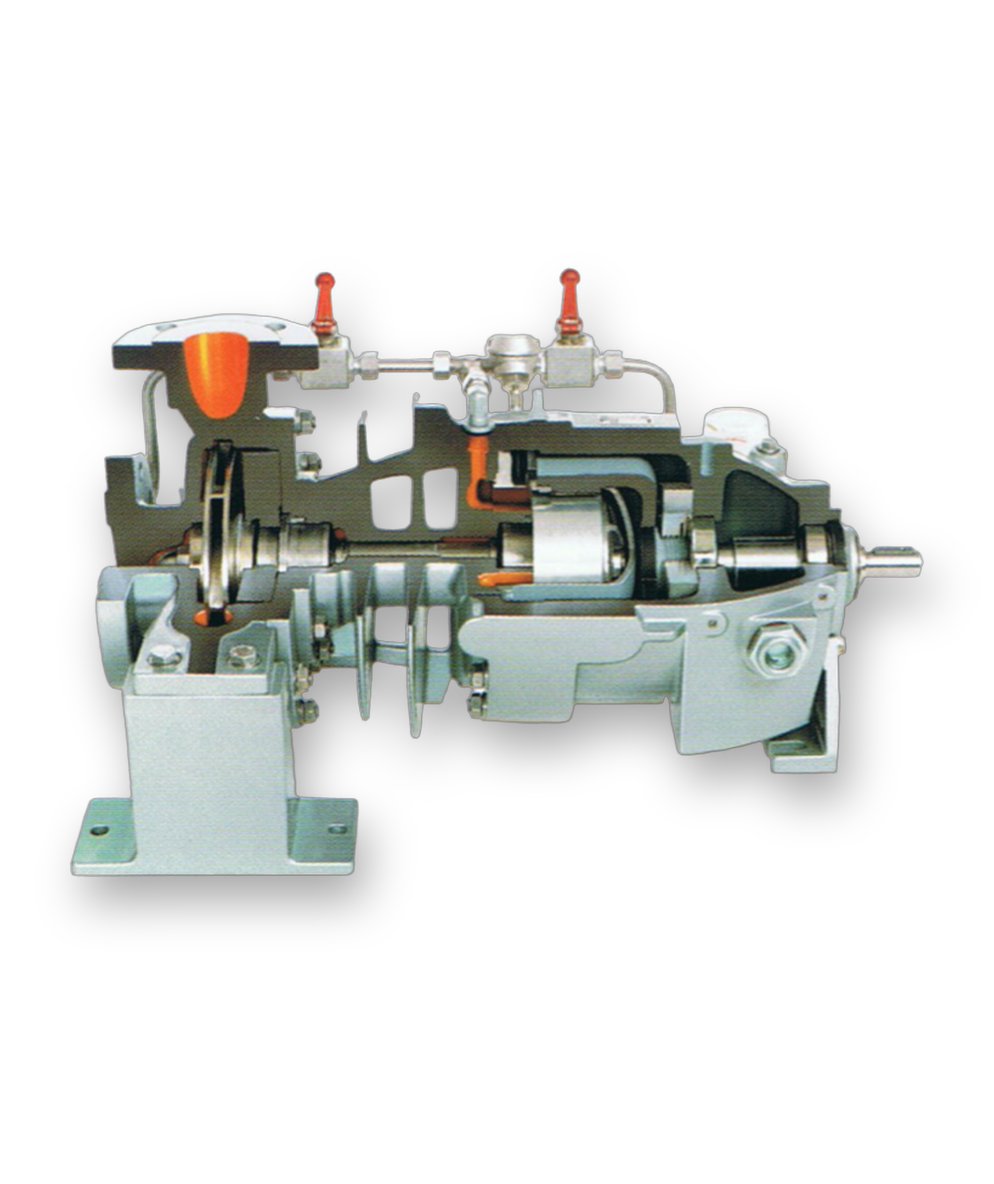

Cutaway of a Dickow NMW hot oil magnetic drive pump — **DICKOW PUMP MODELS NMW & NMWR**

HOT OIL CIRCULATION PUMPS

Magnetic coupled DICKOW-pumps of the series NMW are of sealless design. The containment shell forms a closed system with hermetically sealed liquid end.

APPLICATIONS

The magnetic driven NMW and NMWR pumps are designed for hot oil applications, to improve plant and personnel safety in industrial heating plants. Mechanical seals are eliminated. No utility cooling needed. In these cases, double mechanical seals are required in conventional pumps.

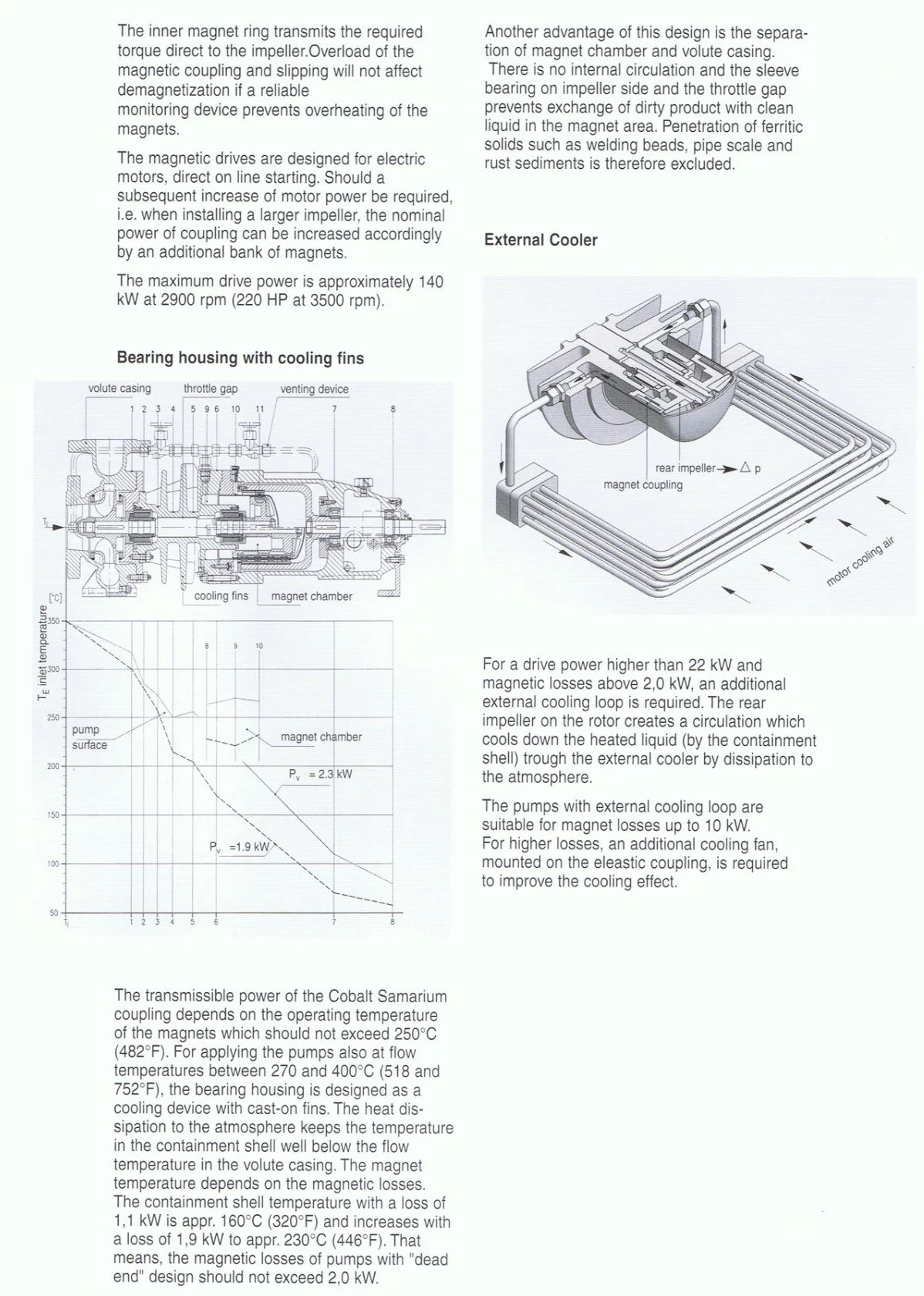

Dickow Hot Oil Pumps NMW & NMWR (view 2)

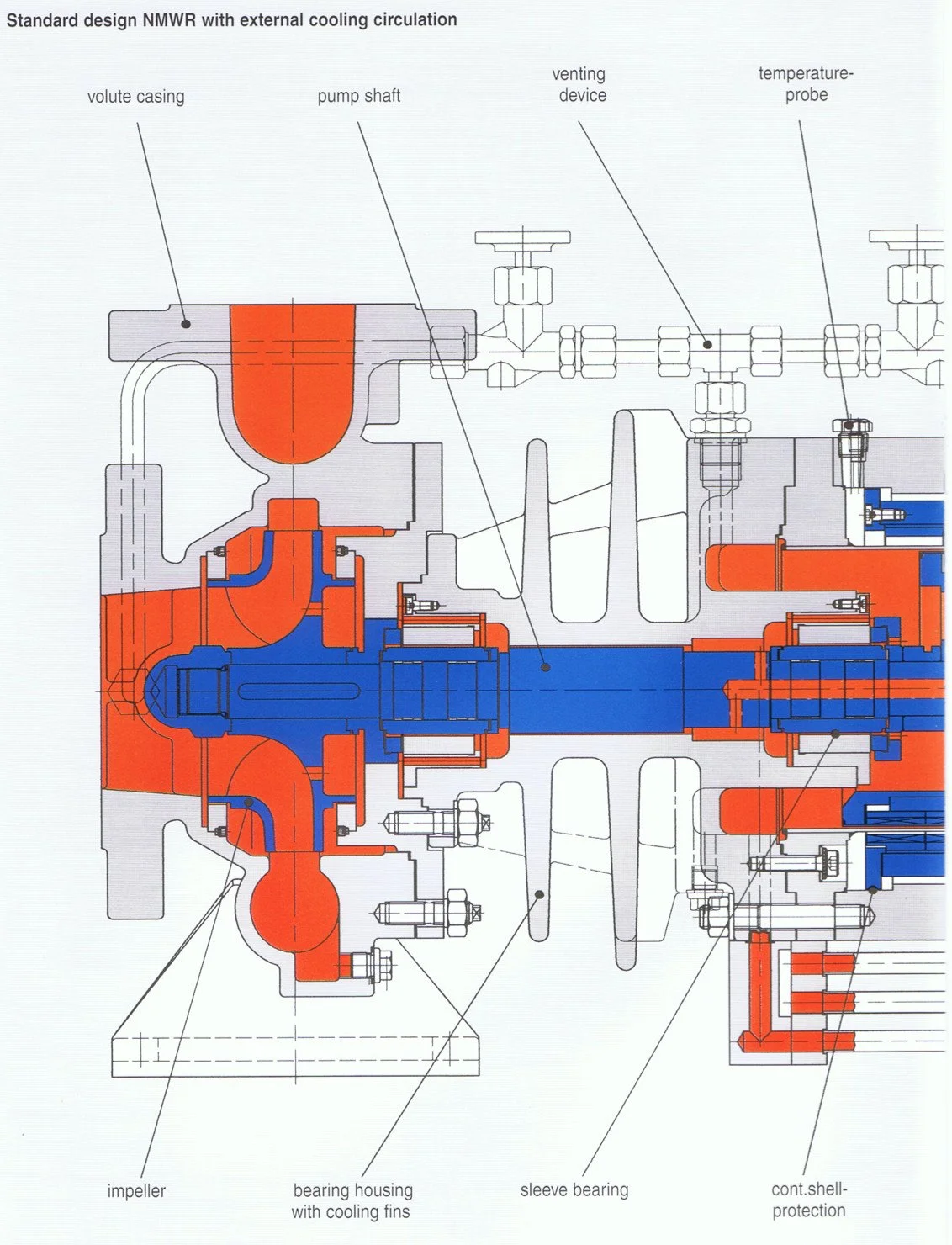

Dickow Hot Oil Pumps NMW & NMWR (view 3)

Dickow Hot Oil Pumps NMW & NMWR (view 4)

Dickow Hot Oil Pumps NMW & NMWR (view 5)

Dickow Hot Oil Pumps NMW & NMWR (view 6)

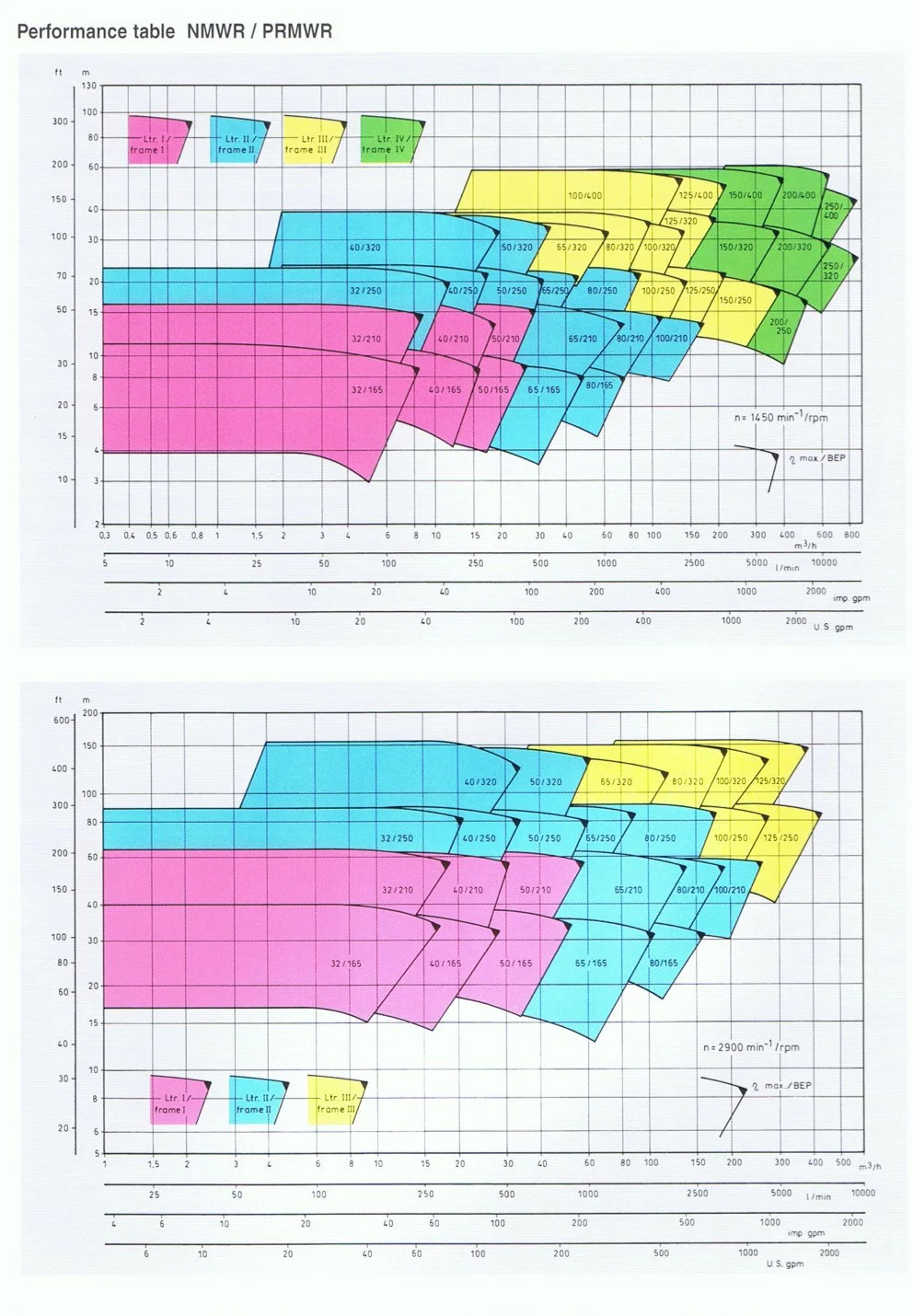

Dickow Hot Oil Pumps NMW & NMWR (view 7)

Download Product Bulletin

Dickow NMW and NMWR hot oil circulation pumps are magnetic coupled and sealless, with a containment shell that forms a closed system around a hermetically sealed liquid end, so no seal cooling is needed. Cal West Mashy is the exclusive Northern California and Western Nevada Dickow rep. Call 888-841-3335.
