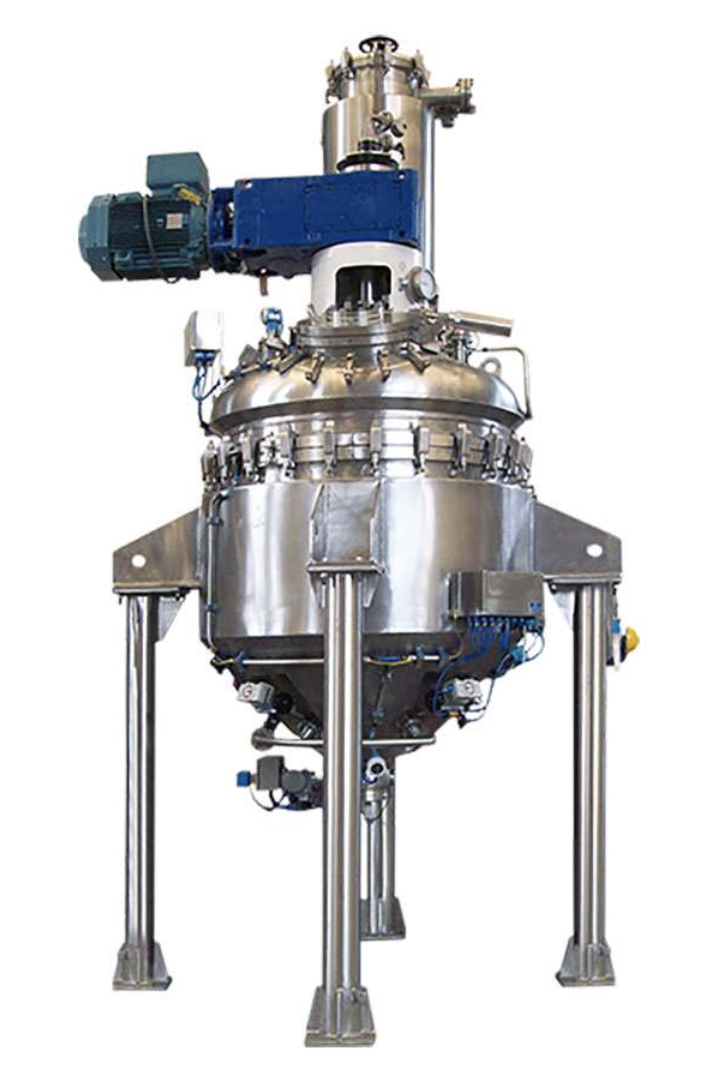

Conical or Conical-Cylindrical Vacuum Mixer-Dryer
Recommended for vacuum drying and homogenizing powders

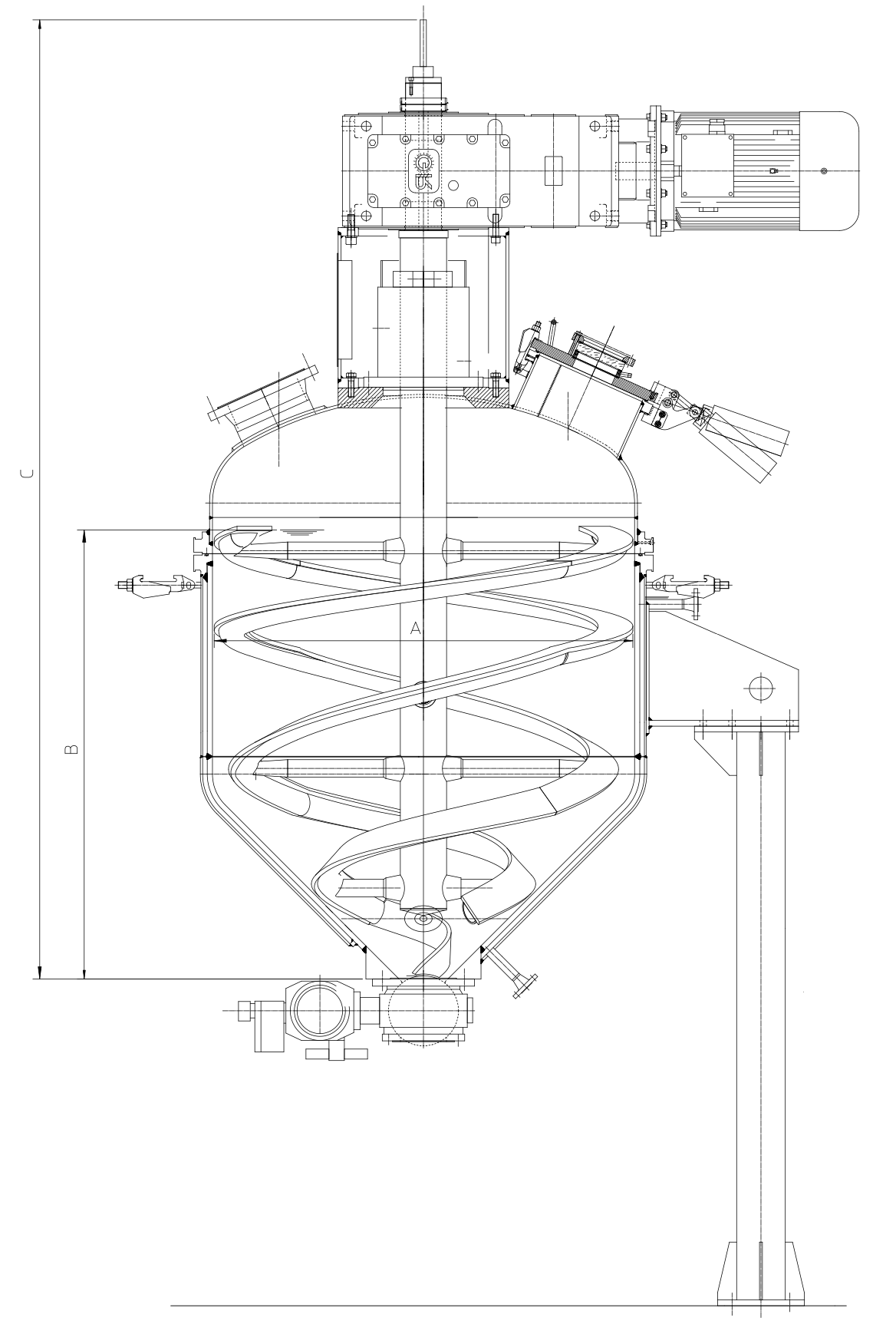

Includes: a conical section welded to a cylindrical section (optional) and flanged to a dished head, a mixing helix, a dust filter
The helix rotation agitates the product resulting in bottom to top movement
The lower conical section allows complete discharge after drying
The helix is supported from the top

Available volumes from 120 to 20.000 liters
Single or double mechanical seal dry running or "lift-off"
Available in chemical, pharmaceutical and sterile versions
Vacuum, solvent recovery, heating & cooling, iinerting systems
PLC automation systems
Material in contact with the product: 316 L Stainless Steel, SAF 2205, Uranus B6, Alloy C 22, Titanium and many more
